Valves

Valves

Cast and forged steel valves to API, ASME and EN in carbon, alloy, stainless, nickel-alloys (gate, globe, check, ball, butterfly, plug, pressure relief, strainers, steam traps, sight-glasses).


We supply any type of valve for oil, gas, water, steam, acids, and solids ex-stock or ex-mill.

Gate, globe, check valves (GGC)

  • Body: Forged or cast steel
  • Specifications: API600, API602, API603, BS5352, BS1414, BS1873, BS1868, ANSI B 16.34 or DIN
  • Size Range: 1/2″ (DN15) to 48″ (DN1200)
  • Pressure ratings: #150 to #4500, PN10 to PN160
  • Body materials for cast valves: ASTM A536 (cast iron), A216 WCA/WCB/WCC (high-temperature carbon steel), A352 LCA/LCB/LCC/LC1/LC2/LC3 (low-temperature carbon steel), A217 WC1/C5/WC4/WC5/WC6/WC9/WC11/WC91 (low alloy steel), A351 CF3/CF8/CF8M/CF10/,  A890, A995 (special stainless steels), nickel alloys
  • Body materials for forged valves: ASTM A105 (high-temperature carbon steel), A350 LF1/LF2/LF3, A182 F1/F5/F9/F11/F22/F91 (low alloy steel), A182 F304/316/321/347 (stainless steel), A182 F51 (duplex), A182 F53/F55 (super duplex), and nickel alloy grades
  • Trim materials: as per API 600 trim chart
  • Design: Outside screw and yoke (OS&Y), Inside screw and yoke (IS&Y)
  • Bonnet design: Bolted, welded, cryogenic, high-pressure, bellows sealed, extended, “Valvolet’s”
  • End Connections: flanged, buttweld, socket weld, NPT/BSP threaded (+lug and wafer for specific valves, like butterfly and ball)

PDF ICONCast Gate Valves PDF ICONCast Globe ValvesPDF ICONCast Check Valves

PDF ICONForged Gate ValvesPDF ICONForged Globe ValvesPDF ICONForged Check Valves

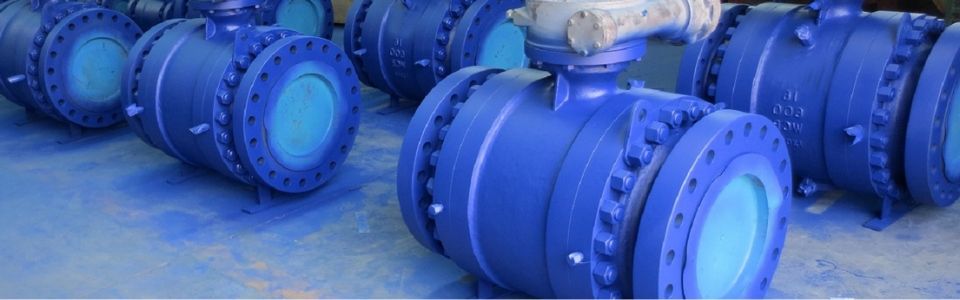

Ball valves (floating/trunnion)

  • Body: Forged or cast steel
  • Specifications: API 6D, ASME B16.34, BS5351, ISO5211, NACE Mr.01.75, TA-Luft, Anti-Static and Firesafe to BS6755 pt. 2 and API607 rev. 4
  • Size Range: 1/2″ (DN15) to 48″ (DN1200)
  • Pressure ratings: #150 to #2500, PN10 to PN160
  • Body Designs: Floating side entry (1-2-3 pcs. split body), Trunnion (top, side entry), Double Block and Bleed (DBB), needle
  • End Connections: flanged, buttweld, socket weld, NPT/BSP threaded
  • Body materials (see gate, globe, check)
  • Trim materials: any
  • Seat Materials: soft (PTFE, R-PTFE, PEEK, POM, Viton, and others) or “metal-to-metal” seat

PDF ICONBall Valves (Floating, Trunnion)


Butterfly valves

  • Body: cast or forged steel
  • Specifications: API 609, BS5155, ISO5752, ISO5211, API607 Rev. 4, BS6755 pt 2.
  • Body Designs: concentric, eccentric (double, triple eccentric)
  • End Connections: double-flanged, buttweld, lug (semi-fully), wafer
  • Body materials: cast iron DIN GG25, ductile iron DIN GGG40, carbon steel ASTM A216 WCB, stainless steel ASTM A351 CF8/CF8M, Low-Temperature Carbon Steel ASTM A352 LCB, Aluminum Bronze ASTM B148, nickel-alloys
  • Disc Materials: Ductile Iron GGG40 Coated, Stainless Steel ASTM A182 F316, Aluminium Bronze ASTM B148.
  • Seat Materials: EPDM, NBR, CR, FPM, PTFE, or “metal-to-metal” seat

Knife gate valves

  • Body: generally cast steel
  • Specifications: ASME B16.34, MSS-SP-81, TAPPI 405-8
  • Sizes: Up to 48″ and pressure rating #300
  • Body/bonnet designs: bolted bonnet, wafer, bonnetless, high-performance
  • End Connections: generally wafer design to fit any flange configuration
  • Standard Body Materials: Ductile Iron, Carbon Steel ASTM A216WCB and Stainless Steel A351CF8M.
  • Seat Materials: Metal to Metal, Viton, Aflas, EPDM, and Polyurethane
  • Trim: generally stainless steel ASTM A182 F316

Other types of valves

Lubricated plug valves API 6D/API 6A, diaphragm, Y and basket strainers for pipeline debris, steam traps, pressure relief valves (PRV), and safety valves.
PDF ICONStrainersPDF ICONOther Valves


Downloads

PDF ICONCast Valves

PDF ICONForged Valves

PDF ICONY Strainers

  • Tags

    ANSI valves, API 600 valves, API 602 valves, API 609, API 6D valves, ASME valves, ball valve, basket strainer, butterfly valve, cast valves, check valve, double eccentric butterfly valve, floating ball valve, forged valves, gate valve, globe valve, high performance butterfly valve, triple eccentric butterfly valve, trunnion ball valve, valves, wafer ball valve, y-strainer

  • Sizes:

    ½-48" - Any pressure rating

  • Materials:

    Carbon Steel, Alloy Steel, Stainless Steel, Duplex, Nickel Alloys

  • Origins:

    Italy, Germany, Spain, France, Netherlands, UK, South Korea, Japan
